Inspection automation from CAD to FAI report.

PAS turns 3D models and drawings into ballooned drawings, verified CMM and 3D-scanner programs, and customer-ready AS9102 FAI, Cpk and batch reports. Automatically, in minutes.

Request a live demo Explore the suite
90%
less CMM programming time
70-90%
faster drawing ballooning
1
inspection model for CMM, scanner & Equator

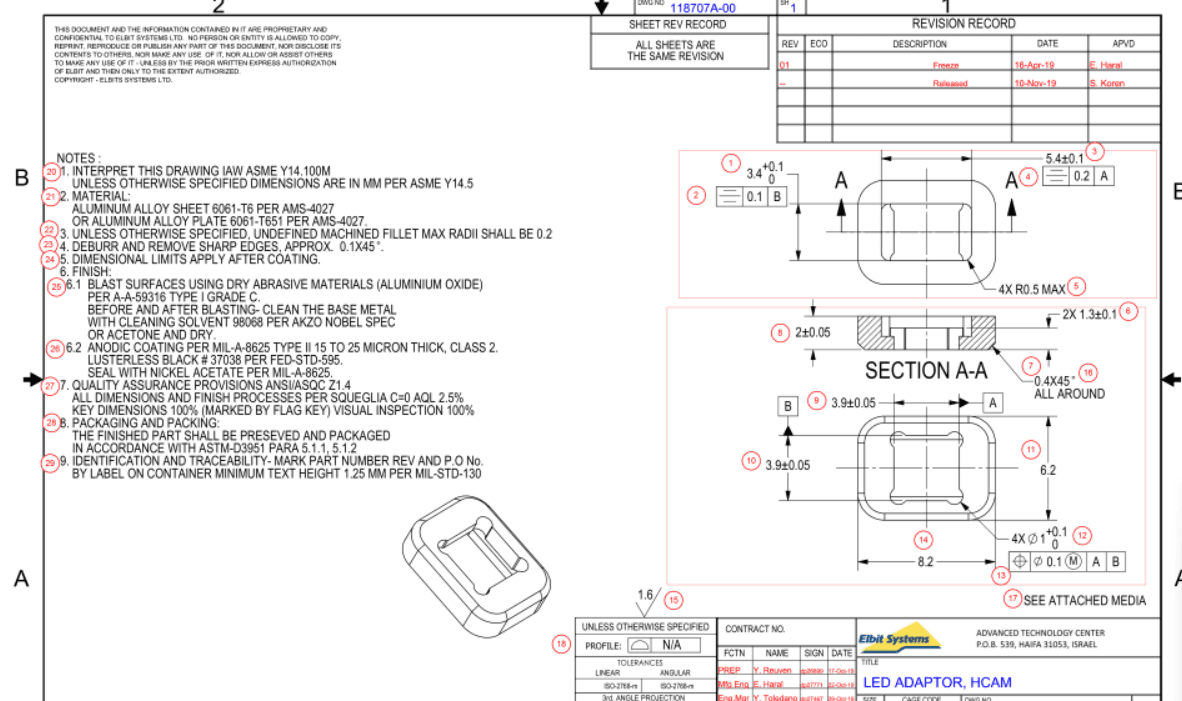

118707A-00.pdfAUTO-BALLOONED · 5 CHAR.
12345
CMM program (DMIS)
Scanner / Equator routine
FAI · Cpk · Batch report
AS9102 · Form 3
First Article Inspection
AUTO-FILLED
#NominalTolActual
13.400+0.10 / 03.462
25.400±0.105.381
3Ø1.000+0.10 / 01.043
43.900±0.053.961
5⌖ 0.1 ⓂA | B0.062
Cpk (char. 3)1.34 · Capable
CIR_3.dmigenerated
F(CIR_3)=FEAT/CIRCLE,INNER,CART,
41.20,18.75,0,0,0,1,1.000
MEAS/CIRCLE,F(CIR_3),4
PTMEAS/CART,41.70,18.75,-2
PTMEAS/CART,41.20,19.25,-2
ENDMES
OUTPUT/FA(CIR_3),TA(DIAM_3)

Trusted in production by Israel's aerospace, defense and precision industries

The PAS suite

Four products. One inspection model.

Every PAS module works from the same structured inspection model, so the drawing, the machine program and the report always agree.

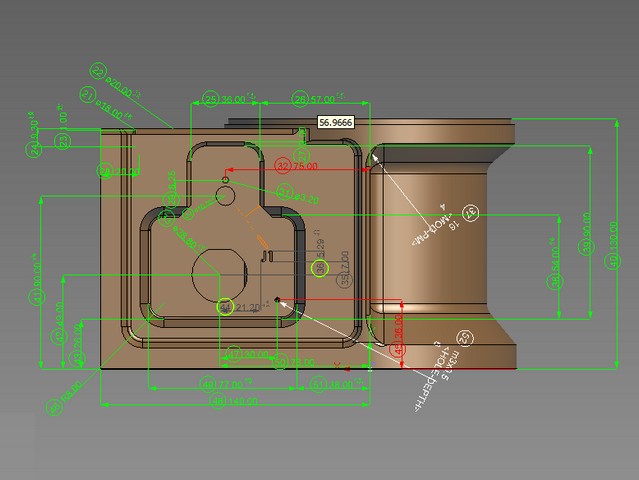

CMM Programming Automation

PAS CMM

From CAD model to a verified CMM program in minutes, not days.

  • SolidWorks
  • CATIA
  • NX
  • Creo (Pro/E)
  • STEP
  • IGES
Explore PAS CMM

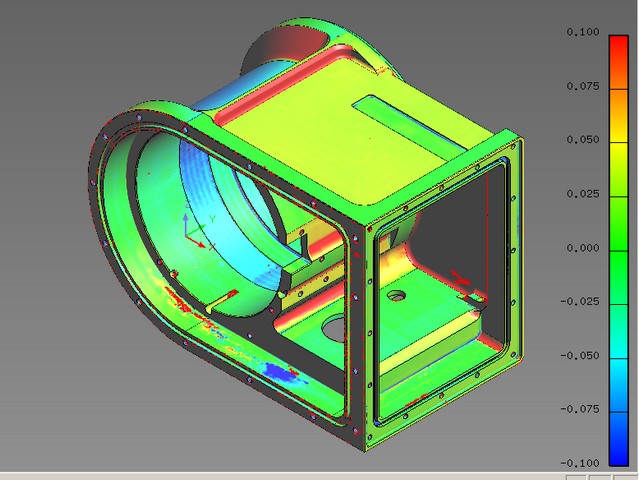

Optical Metrology Automation

PAS OM

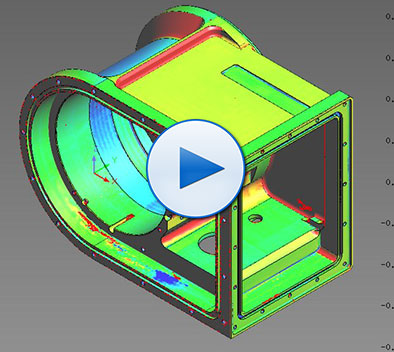

The same automated inspection plan, now for 3D scanners and optical systems.

  • GOM / ZEISS Inspect
  • PolyWorks
  • Geomagic Control X
  • Renishaw Equator
Explore PAS OM

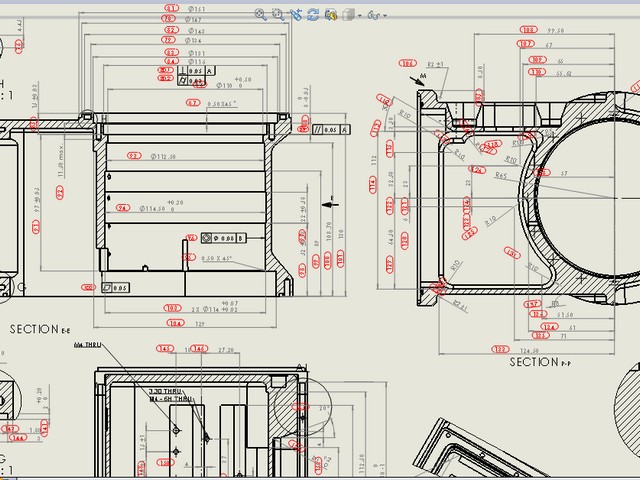

Automatic Drawing Ballooning

PAS PDF

Balloon any drawing automatically: native or scanned PDF.

  • PDF (vector)
  • PDF (scanned / photo)
  • SLDDRW via PAS CMM
  • CAMIO
Explore PAS PDF
FAI, Cpk & Batch Reporting

PAS Report

Inspection results in. Customer-ready FAI, Cpk and batch reports out.

  • AS9102 Forms 1/2/3
  • Excel
  • PDF
  • CAMIO
  • PC-DMIS
  • DMIS
Explore PAS Report

How it works

From engineering data to trusted results in four steps

No manual interpretation, no retyping. What the drawing requires is what the machine inspects and what the report shows.

Input
01

Import CAD & drawing

SolidWorks, CATIA, NX, Creo, STEP or IGES, or just a PDF drawing. Native SLDPRT + SLDDRW pairs are handled by the SolidWorks add-in.

PAS PDF · PAS CMM
02

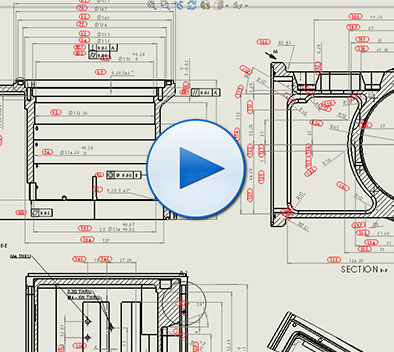

Auto-balloon & recognize

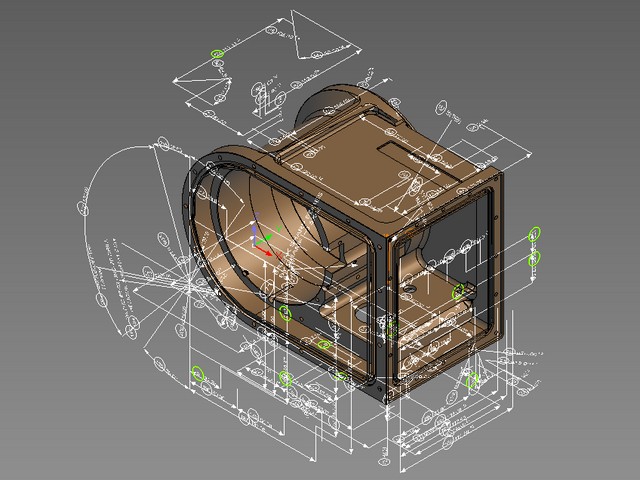

Every dimension, tolerance and GD&T frame is recognized, numbered and linked to model geometry. Criticality and tooling are assigned per balloon.

PAS CMM · PAS OM
03

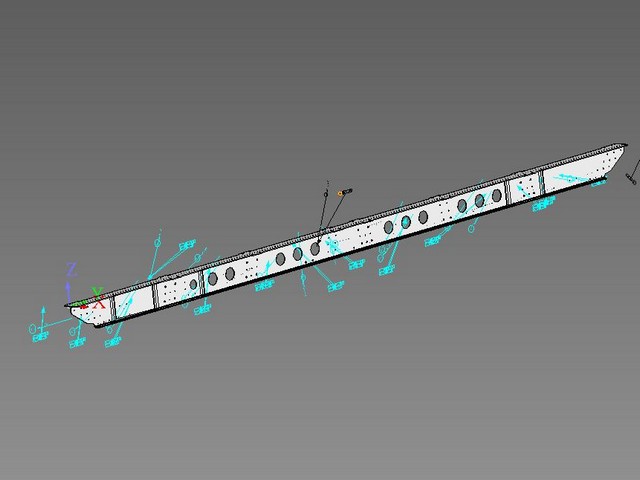

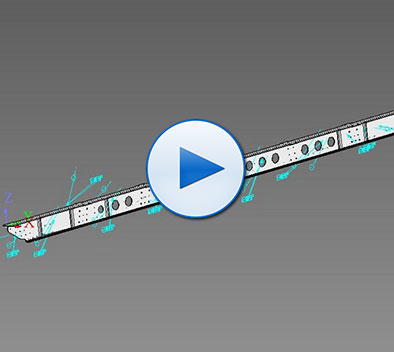

Generate the program

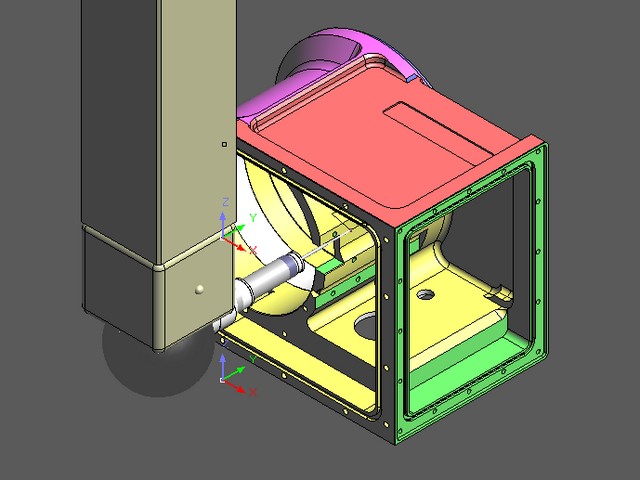

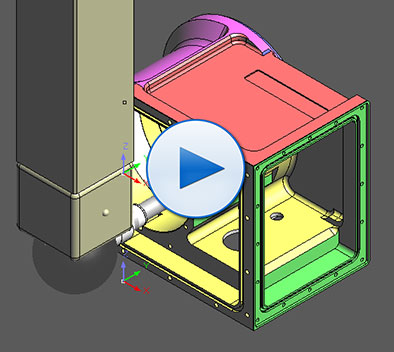

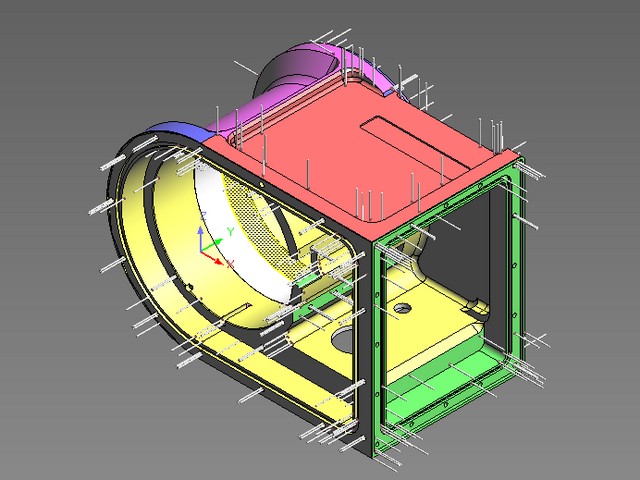

Collision-free CMM program (DMIS, PC-DMIS, CAMIO, COSMOS, Calypso) or scanner / Renishaw Equator routine, simulated before release.

PAS Report
04

Import results, report

Results flow back into PAS and fill the customer's AS9102 FAI, Cpk, batch, Min/Max and COC templates automatically.

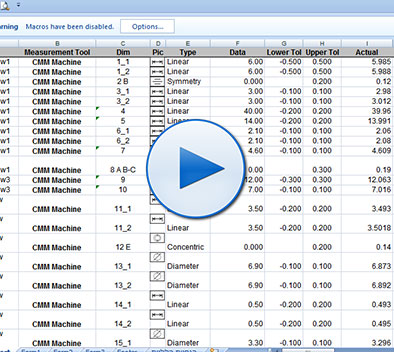

Reporting

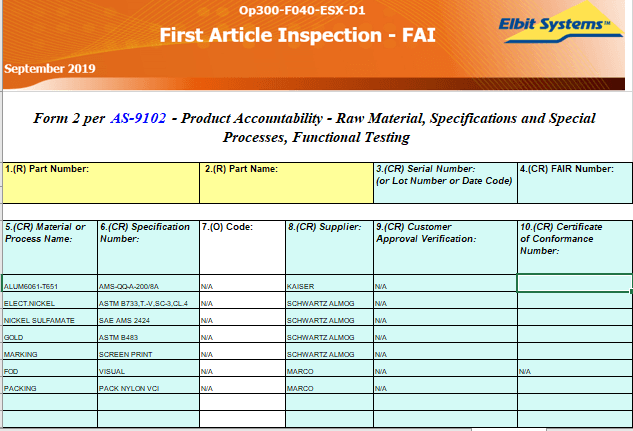

Your customer's FAI format, filled in automatically

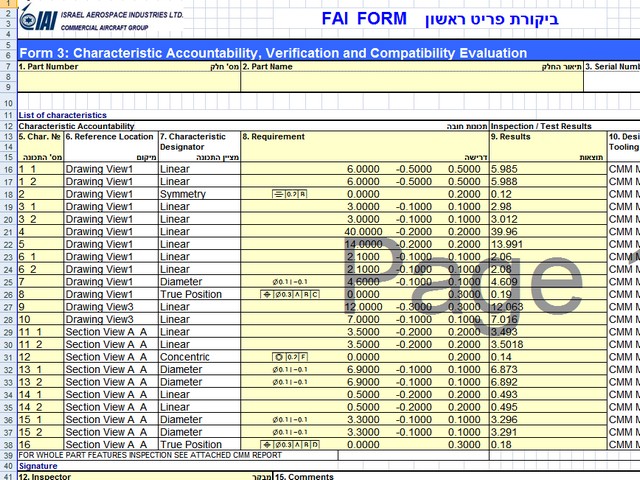

PAS Report ships with AS9102 templates for Elbit, IAI, Rafael, Taas, Mabat and Malam. Import CMM or scanner results once and every form, Cpk chart and batch report is generated.

  • Forms 1-3 in the customer's own layout

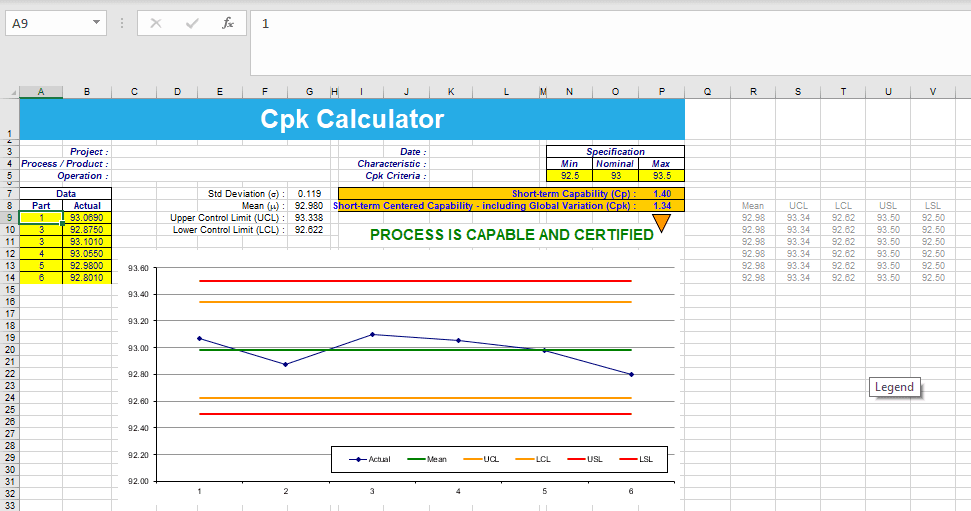

  • Cpk / SPC with UCL, LCL and trend per characteristic
  • Batch (lot), Min/Max and COC reports from the same data
  • Full traceability: balloon → requirement → measured value
Explore PAS Report

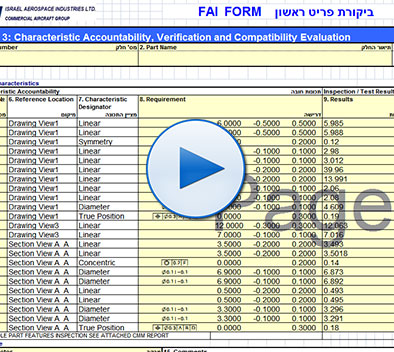

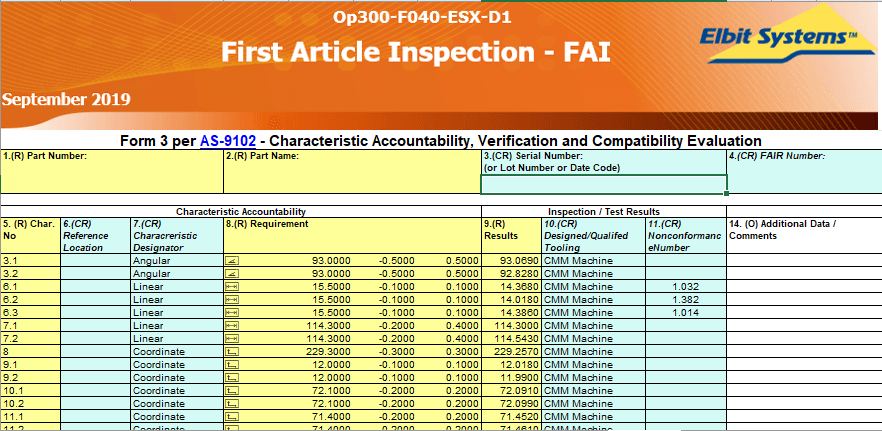

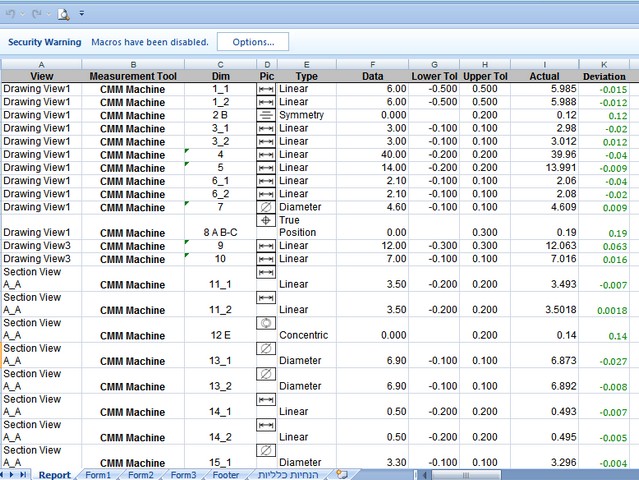

FAI_118707A_Form3.xlsx
AS9102 FAI Form 3 generated by PAS Report

Works with your metrology stack

PAS is a front end to the CAD, CMM, scanner and gauging software you already own.

PolyWorksGOM / ZEISS InspectGeomagic Control XCOSMOSDMIS

Industries

Built with the most demanding quality teams

PAS was developed side by side with aerospace and defense primes and is used daily in regulated, high-mix production.

Aerospace & Defense

AS9102 FAI, key-characteristic control and full traceability for primes and their supply chain.

  • AS9102 Forms 1-3 in customer formats
  • Key / critical characteristic flags

Medical Devices

Validated, repeatable inspection programs and Cpk evidence for regulated production.

  • Cpk / SPC per characteristic
  • Batch reports for lot release

Electronics & Electro-Optics

Small, complex machined housings with tight GD&T, programmed and reported automatically.

  • Automatic GD&T recognition
  • Scanner support for thin-wall parts

Precision Machining & Job Shops

Deliver customer-specific FAI packages without a dedicated CMM programmer.

  • Non-expert users program CMMs
  • One inspection model for every machine

See PAS on your own parts.

Send us a CAD model and a drawing. We will show you the ballooned drawing, the inspection program and the FAI report, generated live.

Request a live demo Training Center
